Product Overview

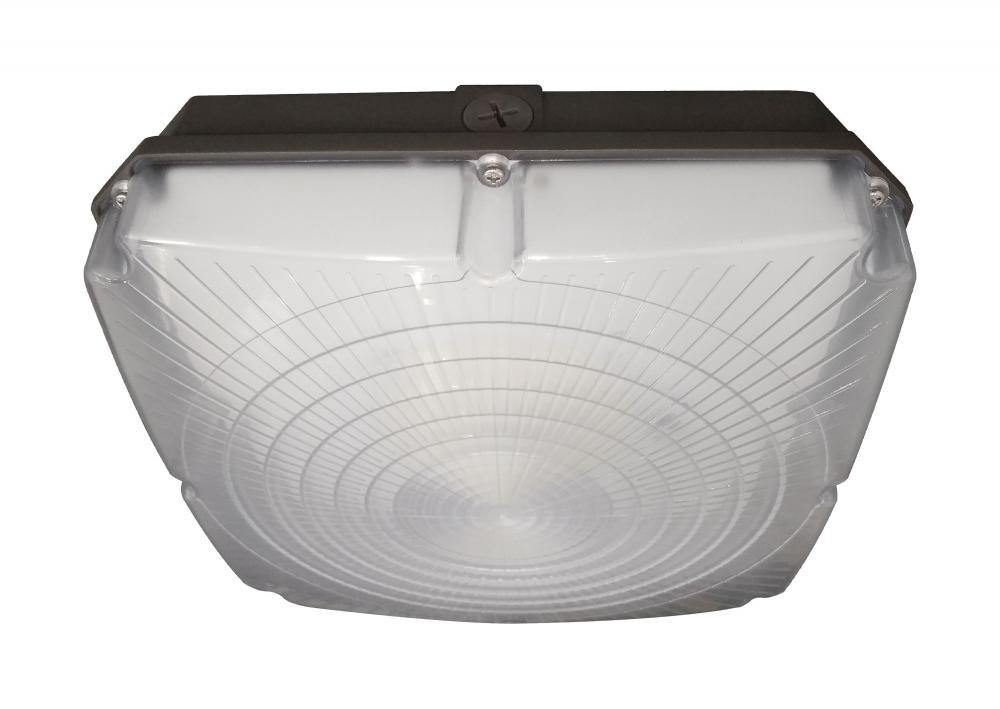

LED Canopy Fixture; 28W; 5000K; 120-277V

Standard Information

Category:

Specialty Items

Subcategory:

Canopies

Finish:

Bronze

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Additional Info:

UV stabilized powder coated finish

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

10.51

Each Length:

10.39

Each Width:

5.04

Length:

8.5

Lumens:

3360L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.280-0.101A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

150

B_U_G_Rating:

B2-U3-G1

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Parking Garage Luminaires

Each Cube:

0.3185

Each Quantity:

1

Efficacy:

120.00 LPW

FCC Compliant:

Yes

Feature 1:

Natural light

Feature 2:

Add on Microwave Sensor or Photocell available

Feature 3:

Wet rated for outdoor use

Feature 4:

L:8.50 inches; W:8.50 inches; H:3.75 inches

Feature 5:

Square LED Module, Bronze Finish

Finish Family:

Bronze

Fixture shape:

Square

Incandescent Equivalent:

200W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-139 frosted 28-watt 8.5 inch LED canopy fixture offers natural lighting in a bronze finish. The fixture features multiple optional sensors and a 150 degree beam spread suitable for use in parking garages. Dimmable and long-lasting, this

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Multiple Optional Sensors Available

Power Factor:

0.95

Quantity In Pack:

1

R9 Value:

21

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's frosted 28-watt 8.5 inch LED canopy fixture offers natural lighting in a bronze finish. The fixture features multiple optional sensors and a 150 degree beam spread suitable for use in parking garages. Dimmable and long-lasting, this fixtur

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

28W LED CANOPY FIXTURE 8.5"

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

10.20%

Wattage Selectable:

No

Weight Lb.:

3.53

Wire Quantity:

5

Wire Temp Rating:

105C (221F) - 125C (257F)
