Product Overview

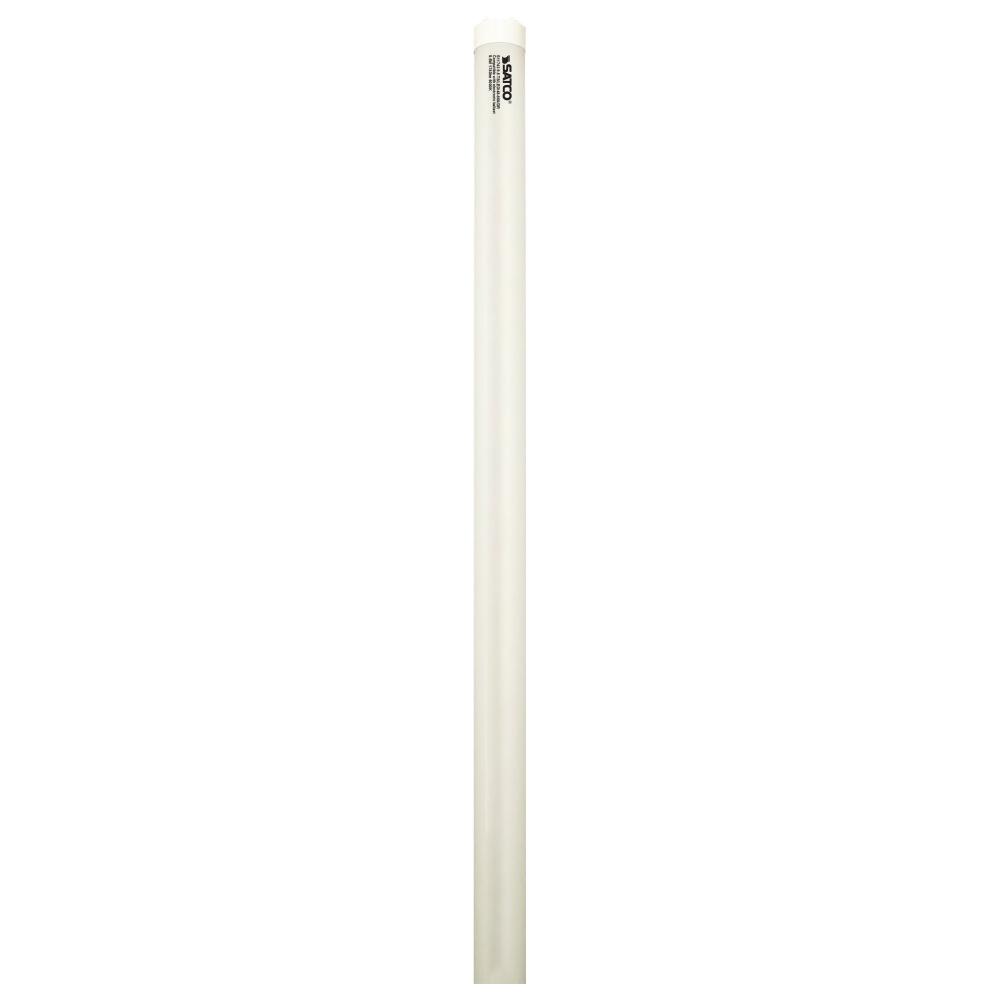

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

1601-2600

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

T8

Diameter:

1

EA Length:

48

Harmonized Codes:

8539.52.0051

Length:

48

Lumens:

1740L

Shap Carton Width:

1.1

Ship Carton Height:

1.1

Ship Weight:

0.51

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.42

BAA Compliant:

No

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required.May not be compatible with every ballast. Refer to the ballast compatibility chart

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Gloss

Burning Position:

Universal

Carton Cubic Feet:

0.0336

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PL2JWH754LKM

DLC Primary Use:

Replacement Lamps (Plug and Play) (UL Type A)

Efficacy:

183.16 LPW

FCC Compliant:

Yes

Feature 1:

Up to 183 lumens per watt (LPW)

Feature 2:

All glass tubes - no aging, yellowing, or bending

Feature 3:

Compatible with most instant start, rapid start T8 electronic ballasts

Feature 4:

Damp location rated

Feature 5:

DLC 5.1 certified

Feature 6:

Integrated thermal fuse at pins

Feature 7:

Operating Temperature: -20C (-4F) to a maximum of 45C (113F)

Feature 8:

Long life - Rated for 50,000 hours

Flourescent Equivalent:

32W/30W/28W/25W

Housing Color:

White

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S11743 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, ho

Material:

Glass

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

12

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, hospitali

SDS class:

LED_Lamp

Short Description:

9.5/T8/LED/48-850/DR

Specification Notes:

Surge Protection

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

9.5W

Country of Origin- China
