Product Overview

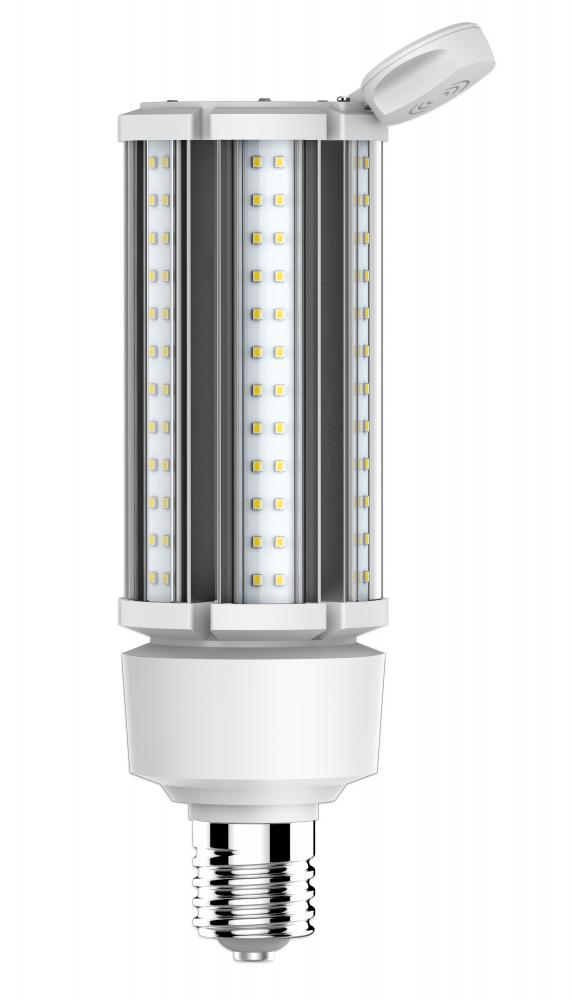

63 Watt LED HID Replacement; 3000K; Mogul base; Type B Ballast Bypass;100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

3300+

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

Corncob

Diameter:

3.38

EA Length:

3.66

Harmonized Codes:

8539.52.0091

Length:

10.88

Lumens:

7875L

Shap Carton Width:

3.66

Ship Carton Height:

12.24

Ship Weight:

2.07

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.82

Additional Info:

Built-in motion sensor - Detection area 32-feet; 30 second turn off

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

E39

Bulb Base:

Mogul

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0949

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

125.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

HID Equivalent:

250W

Housing Color:

White

Incandescent Equivalent:

250W

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP42

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Material:

Aluminum

Minimum Compartment Size:

Length: 11 in. Width: 8 in. Depth: 8 in.

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +60C (+140F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Has Motion Sensor

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Sensor Detection Range:

10M (32.8')

Sensor Field of View:

6M (19.69')

Sensor Mounting Height:

32.81 Feet (10m) Maximum

Sensor Occupancy or Vacancy:

Occupancy

Sensor Operating Temperature:

-40C (-40F) to +45C (+113F)

Sensor Operation:

3-way

Sensor Switch Type:

0-10V Dimming

Sensor Time Delay:

3s;30s

Short Description:

63W/LED/HID/3K/MS/100-277V

Style:

Contemporary

Surge Protection:

Built-in surge protection

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

63W

Country of Origin- China
