3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt : 40UWR96

Return to Catalog

Part Number: 40UWR96 / Vendor ID #: 4799

3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt

$13.84

On Sale

Normally $17.30 | You Save $3.46

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1169 items available.

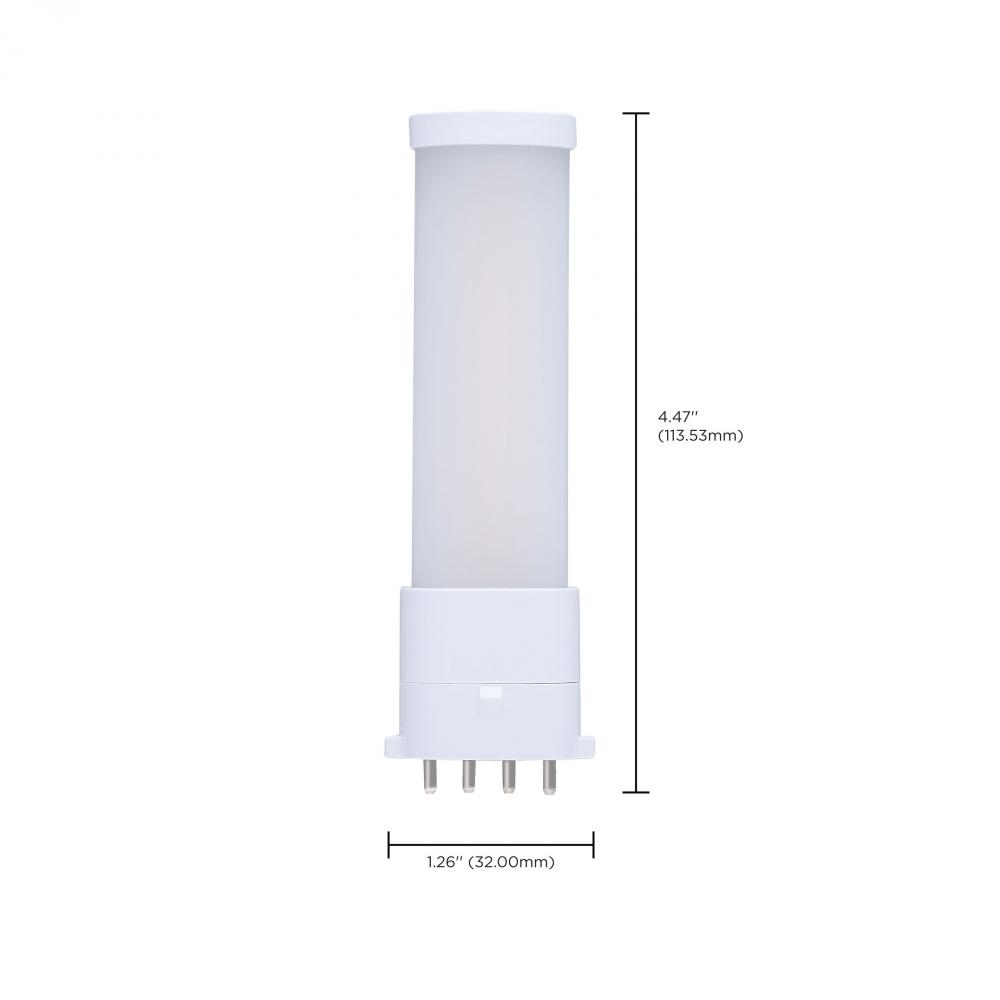

Dimensions

Width: 1.26"

Product Overview

3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K/3000K/3500K/4000K

Bulb Shape:

Diameter:

1.26

EA Length:

1.54

Harmonized Codes:

8539.52.0091

Length:

4.74

Lumens:

380L/390L/400L/410L

Shap Carton Width:

0.91

Ship Carton Height:

4.84

Ship Weight:

0.07

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.06

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

120

Bulb ANSI Base:

2G7

Bulb Base:

2G7

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0039

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

80+

DLC Approved:

Efficacy:

108.57/111.43/114.29/117.14 LPW

Enclosed Fixture Use:

FCC Compliant:

Yes

Feature 1:

4 CCT Selectable

Feature 2:

Type B Ballast Bypass

Feature 3:

120 Degree Beam Spread

Feature 4:

2G7 Lamp Base

Feature 5:

Damp Location Rated

Feature 6:

50,000 Hour Functional Life

Feature 7:

5 Year Warranty

Flourescent Equivalent:

5W/7W/9W

Indoor Outdoor:

Indoor

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

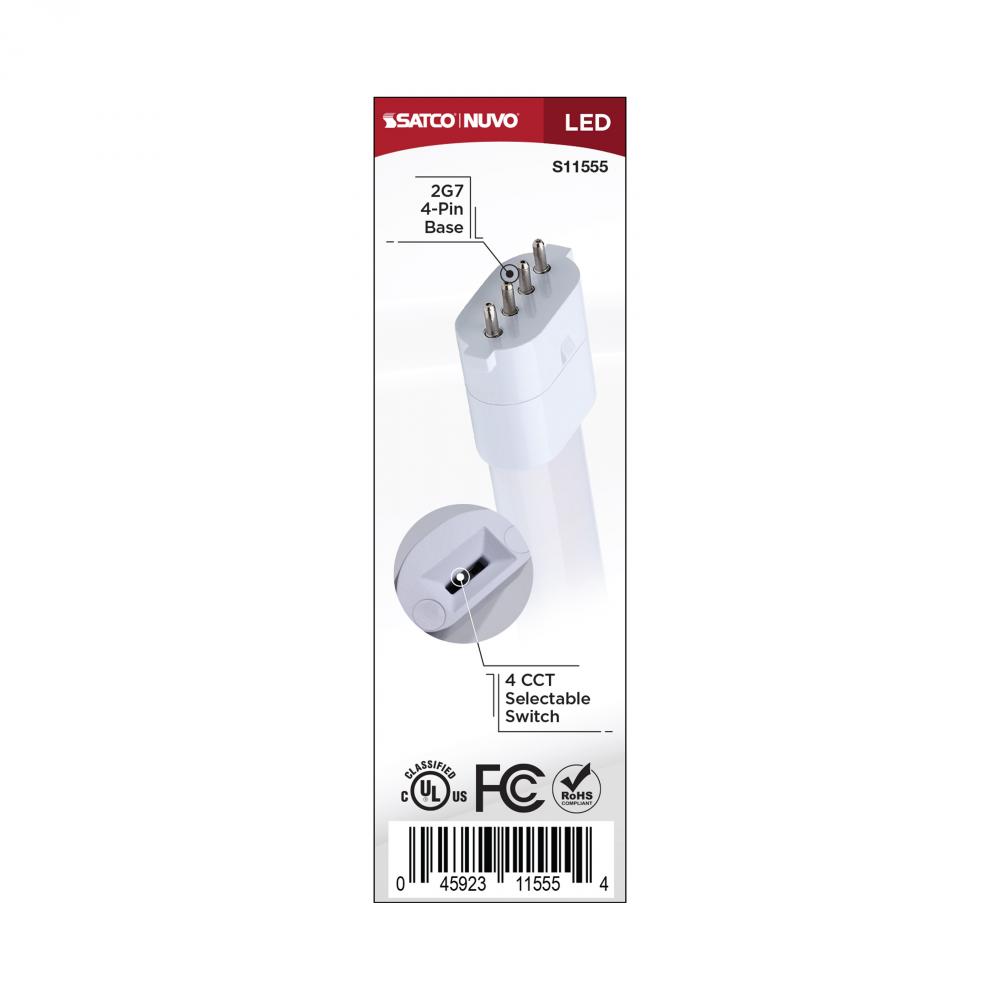

Upgrade your compact fluorescent lighting with SATCO|NUVO's S11555 3.5W Type B LED lamp. Designed to bypass the ballast for direct wiring to the electrical system, this lamp replaces 5W, 7W, and 9W CFL lamps with a 2G7 base. It offers 4 CCT selectable

Material:

Polycarbonate (PC)

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

3.5W/LED/CFL/CCT/2G7/BP

Style:

Transitional

Surge Protection:

Built-in-surge protection - 0.5KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

3.5W

Country of Origin- China
