Product Overview

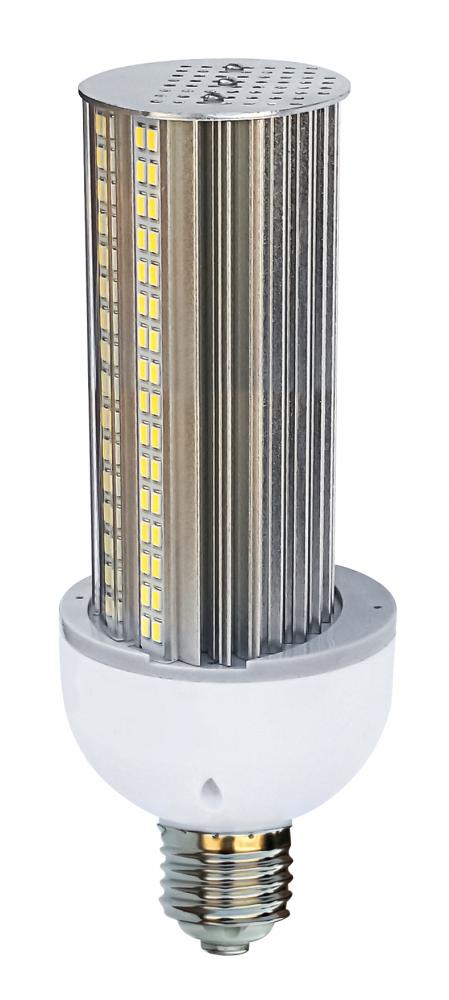

30 Watt LED Hi-lumen directional lamp for commercial fixture applications; 3000K; Mogul base; 100-277 Volt; Ballast bypass - Type B

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

3300+

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

Corncob

Diameter:

3.56

EA Length:

4.02

Harmonized Codes:

8539.52.0091

Length:

8.69

Lumens:

4300L

Shap Carton Width:

4.02

Ship Carton Height:

10.32

Ship Weight:

1.76

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.62

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

180

Bulb ANSI Base:

E39

Bulb Base:

Mogul

Bulb Finish:

Clear

Burning Position:

Horizontal

Carton Cubic Feet:

0.0965

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

85+

DLC Approved:

No

Efficacy:

143.33 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

HID Equivalent:

175W

Housing Color:

White/Grey

Incandescent Equivalent:

125W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Material:

Aluminum

Minimum Compartment Size:

Length: 11 in. Width: 8 in. Depth: 8 in.

Operating Frequency:

50/60Hz

Operating Temp:

-29C (-20.2F) to +60C (+140F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.89

Quantity In Pack:

1

R9 Value:

4

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

30W/LED/HID/WP/3K/E39/100-277V

Style:

Contemporary

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

30W

Country of Origin- China
