Product Overview

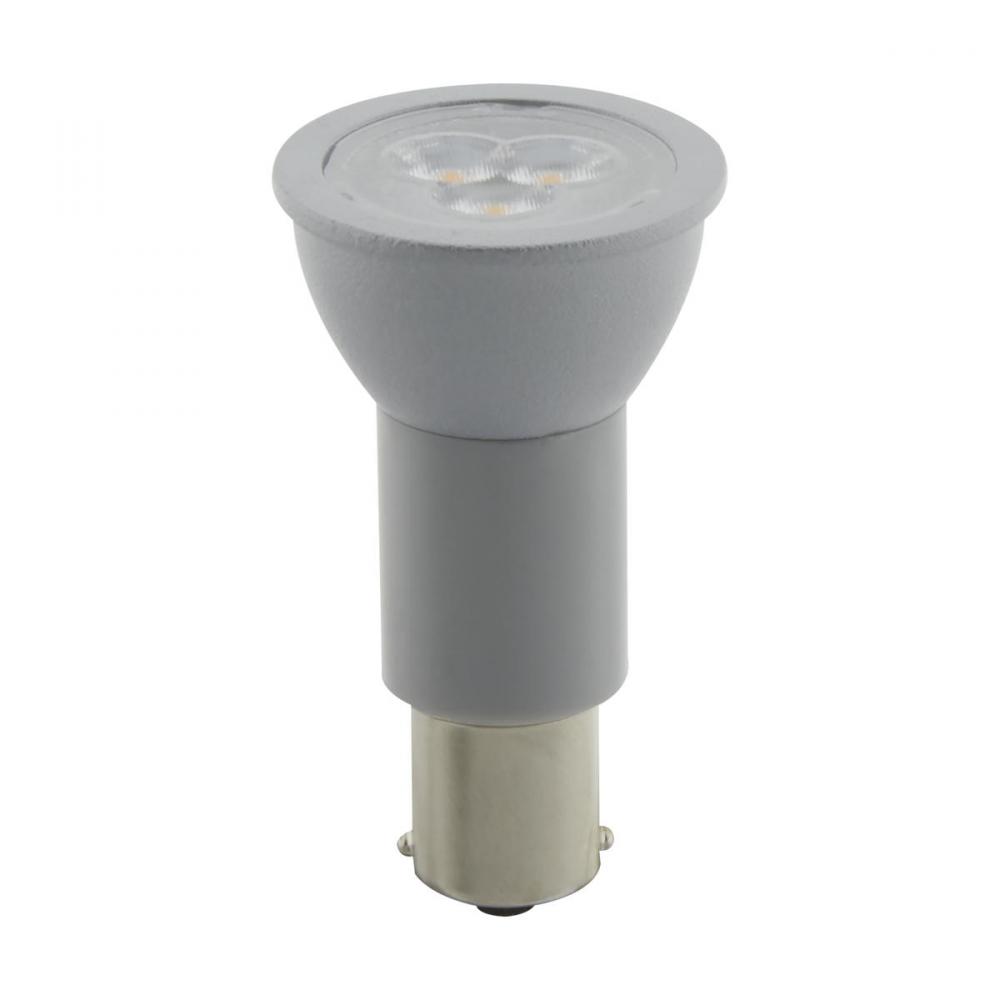

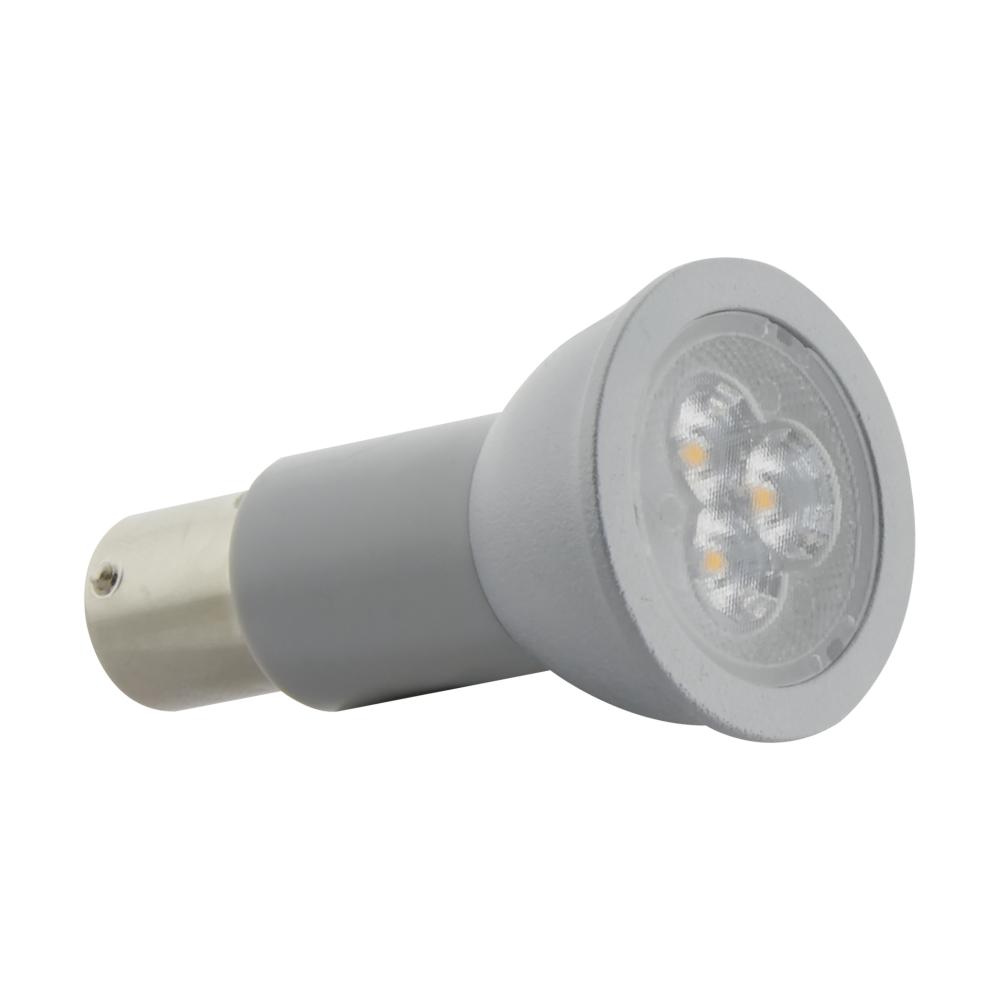

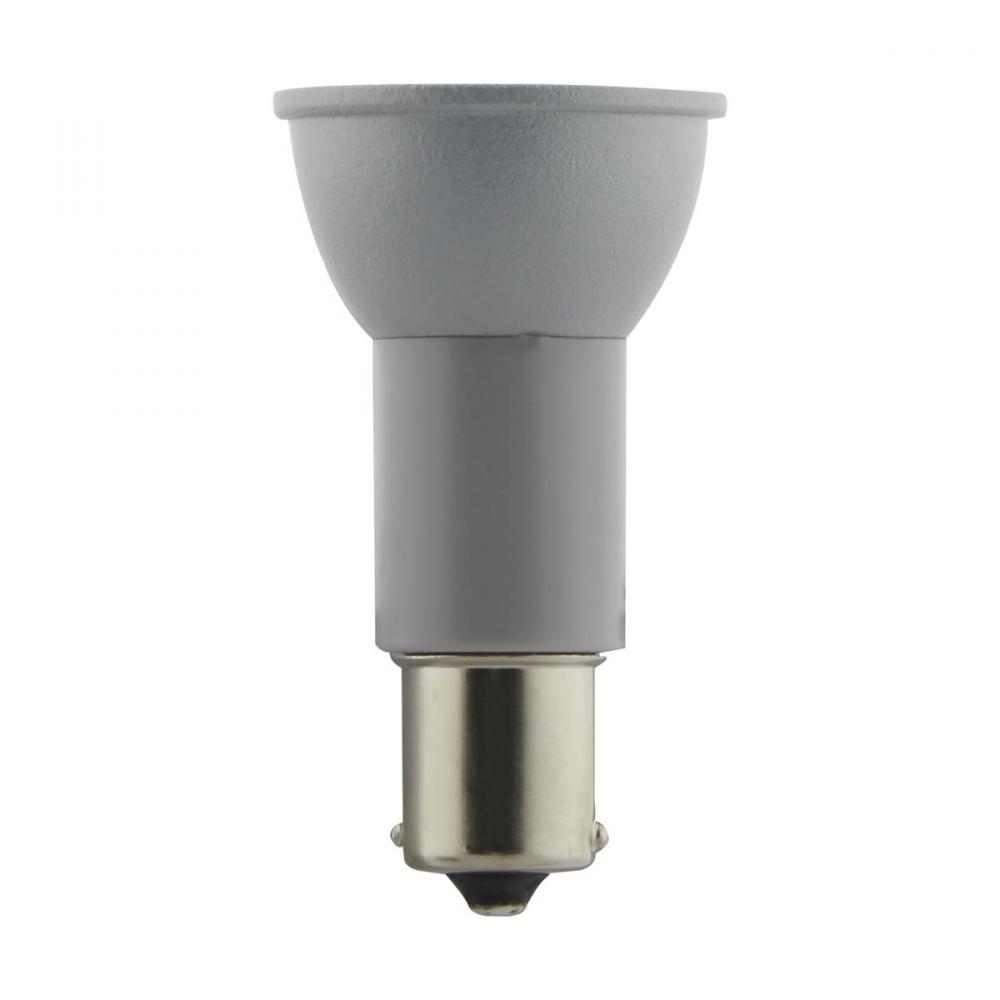

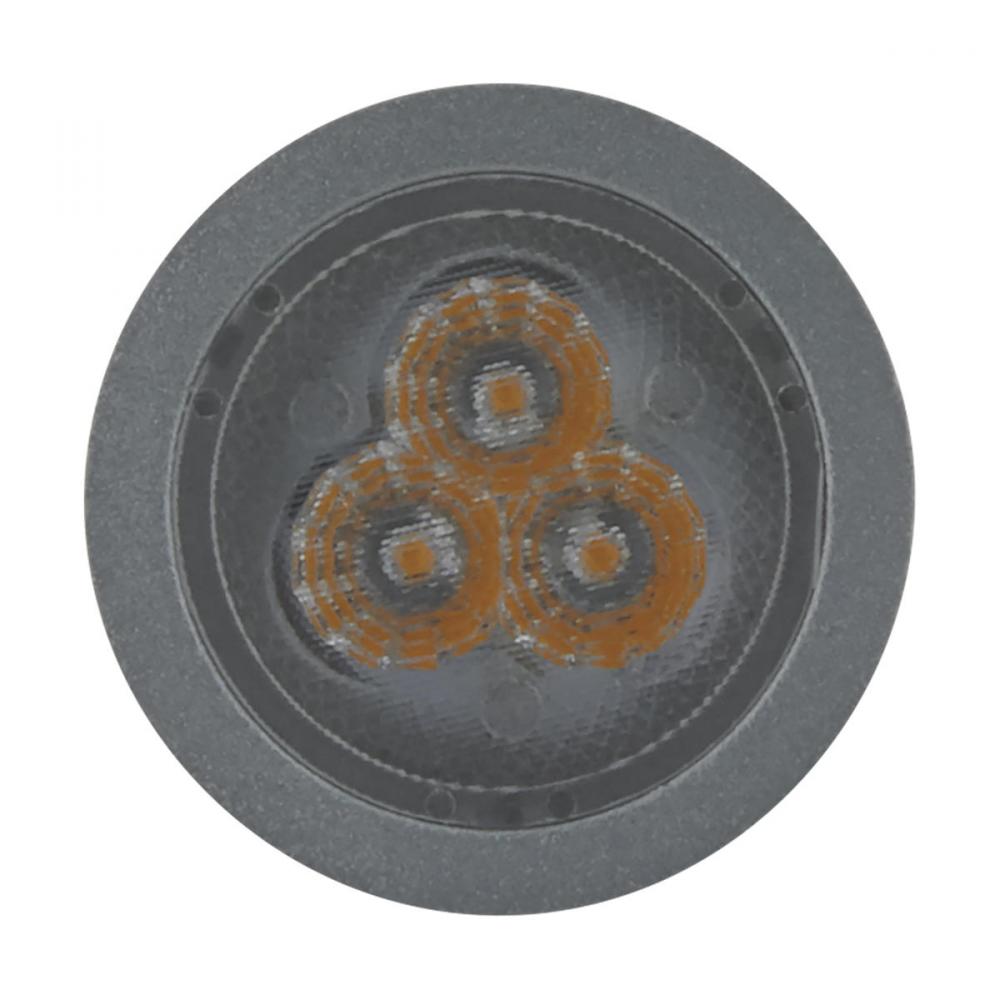

3 Watt; R12 LED; 3000K; Bayonet Single Contact Base; 12 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

Gray

Style:

Traditional

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

Mini and Pin-Based LED

Volts:

12V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

15000

Bulb Kelvin:

3000K

Bulb Shape:

R12

Diameter:

1.38

EA Length:

1.47

Harmonized Codes:

8539.52.0091

Length:

2.5

Lumens:

220L

Shap Carton Width:

1.47

Ship Carton Height:

2.64

Ship Weight:

0.08

Warranty:

3 Year Limited - 10 hr per day

Weight:

0.06

BAA Compliant:

No

Beam Spread:

31

Bulb ANSI Base:

BA15s

Bulb Base:

Bayonet Single Contact

Bulb Finish:

Gray

Burning Position:

Universal

Carton Cubic Feet:

0.0033

Cartons Per Unit:

1

CBCP:

300

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

73.33 LPW

Enclosed Fixture Use:

No

FCC Compliant:

Yes

Feature 1:

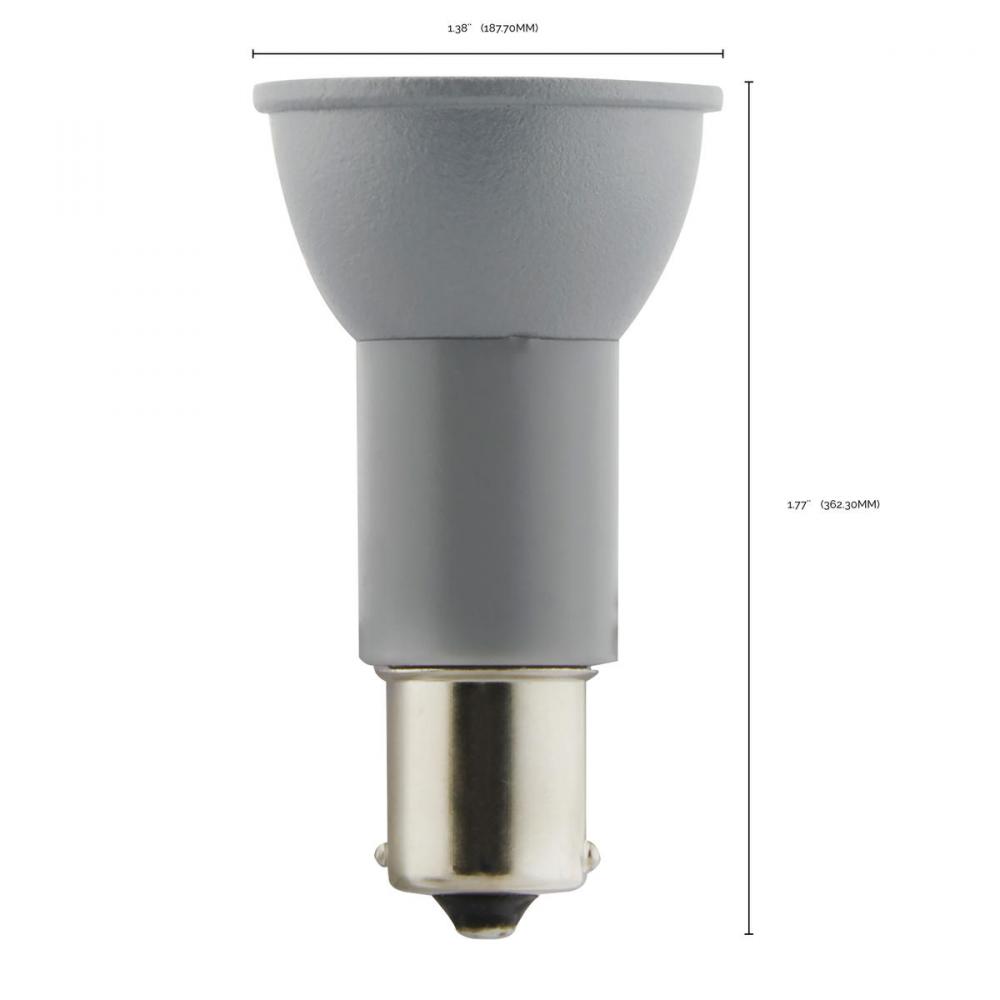

MOL: 2.50 inches, MOD: 1.38 inches

Feature 2:

Gray Finish

Feature 3:

Material: Aluminum and Polycarbonate

Feature 4:

3000K Warm White Light

Feature 5:

220 lumens

Feature 6:

Damp location rated for indoor use

Feature 7:

Bayonet Single Contact Base

Feature 8:

Rated for 15,000 hours

Feature 9:

3-Year Limited Warranty

Has Emergency Battery:

No

HID Equivalent:

20W

Housing Color:

Silver

Incandescent Equivalent:

20W

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

No

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

Satco's S29004 3-watt R12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for elevato

Material:

Aluminum / Polycarbonate (PC)

Operating Frequency:

60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

No

Power Factor:

>0.5

Quantity In Pack:

1

R9 Value:

12

RoHS Compliant:

Yes

Romance Copy:

Satco's 3-watt R12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for elevators, lob

SDS class:

LED_Lamp

Short Description:

3WLED/1383/ELEVATOR/12V AC/DC

Style:

Transitional

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

3W

Country of Origin- China
