Product Overview

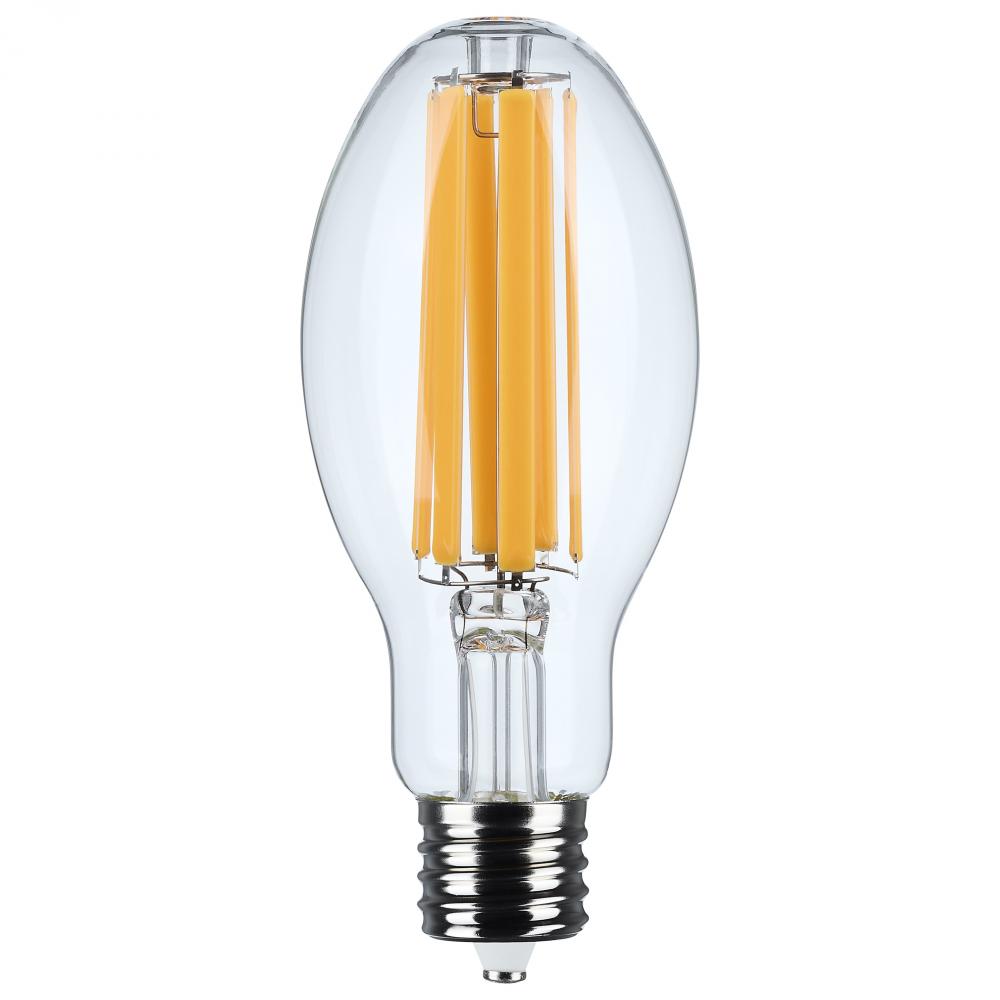

28 Watt LED HID Replacement; ED28; 2200K; Extended Mogul Base; Clear; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2200K

Bulb Shape:

ED28

Diameter:

3.54

EA Length:

3.94

Harmonized Codes:

8539.52.0091

Length:

8.4

Lumens:

4200L

Shap Carton Width:

3.94

Ship Carton Height:

9.45

Ship Weight:

0.68

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.68

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

320

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0849

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

Efficacy:

150.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

ED28

Feature 10:

5 Year Warranty

Feature 2:

EX39 Base

Feature 3:

Clear Finish

Feature 4:

28W

Feature 5:

Range Voltage 120V-277V

Feature 6:

Ballast Bypass Type B

Feature 7:

4kV Integrated Surge Protection

Feature 8:

Non-Dimmable

Feature 9:

Wet Location Rated

HID Equivalent:

150W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Wet

Material:

Glass

Minimum Compartment Size:

Length: 9.25 in. Width: 9.25 in. Height: 17.28 in.

Operating Frequency:

60Hz

Operating Temp:

-30C (-22F) to +65C (+149F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

28W/LED/HID/ED28/822/EX39/CL

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

28W

Country of Origin- China
