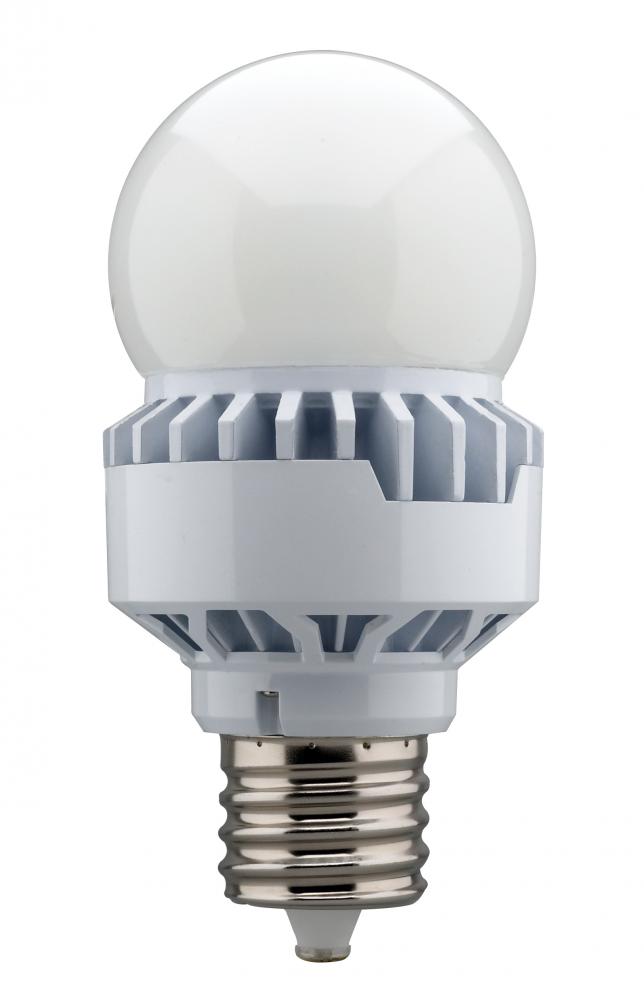

25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277
$61.15
On Sale
Normally $76.44 | You Save $15.29
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 941 items available.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Dimensions
Width: 3.22"
Product Overview
25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
3001-3300
Kelvin:
2501-3000
Wattage:
25w
Refinement Options
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K
Bulb Shape:
A23
Diameter:
3.22
EA Length:
3.5
Harmonized Codes:
8539.52.0010
Length:
6.66
Lumens:
3275L
Shap Carton Width:
3.5
Ship Carton Height:
7.48
Ship Weight:
1
Warranty:
5 Year Limited - Hi-Pro
Weight:
1.1
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
280
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.053
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
131.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 6.66 inches, MOD: 3.22 inches
Feature 2:
Superior 80 CRI light quality, 3275 lumens, 2700K warm white light, with a 280 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
25 watt LED replaces 200W incandescent
Feature 6:
Frost finished bulb with white plastic housing
Feature 7:
5 year limited warranty
HID Equivalent:
100W
Housing Color:
White
Incandescent Equivalent:
200W
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Location Rating:
Damp
Long Description:
Satco's S13104 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kel
Material:
Plastic
Minimum Compartment Size:
Diameter: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
10
RoHS Compliant:
Yes
Romance Copy:
Satco's 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kelvins, t
