Product Overview

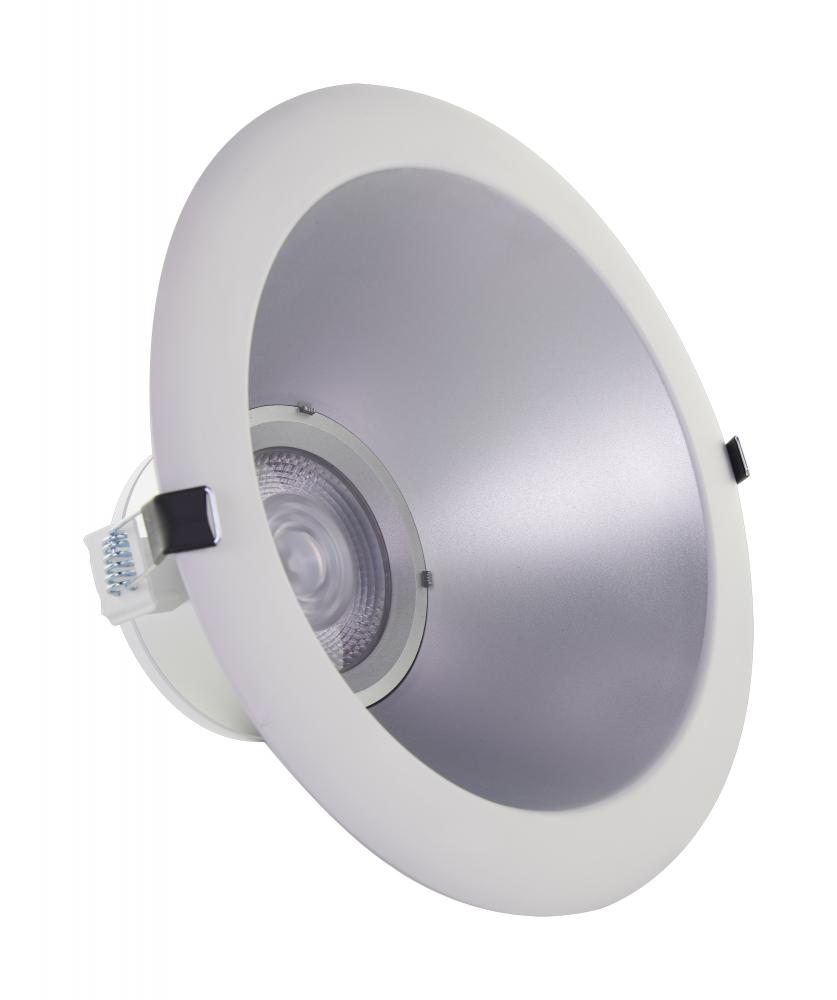

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

LED Bulbs

Other Recessed Ltg.

Finish:

Silver

Style:

Traditional

Option:

LED

Prop 65

Lumens:

801-1100

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

6.77

Dimmable:

Yes-Dimmable

Each Height:

6.3

Each Length:

7.48

Each Width:

7.48

Lumens:

900L/1200L/1750L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - LED Commercial Downlights

Air Tight:

No

Amps:

0.092-0.040/0.133-0.058/0.192-0.083A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

40

CA Prop-65:

Lead

Can Size:

6 in.

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

5.90 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

0.204

Each Quantity:

1

Efficacy:

81.82/75.00/76.09 LPW

FCC Compliant:

Yes

Feature 1:

Lawful for sale in California

Feature 2:

Selectable wattage, lumens, and CCT

Feature 3:

Remote driver and J-box with knockouts

Feature 4:

Quick connect feature for easy installation

Feature 5:

5 year limited warranty

Finish Family:

Silver

Fixture shape:

Round

Flr Equiv:

1 x 26W CFL

Has Driver:

Yes

Has Emergency Battery:

No

IC Rated:

Yes

Incandescent Equivalent:

65W/85W/100W

Indoor Outdoor:

Indoor

Installation Notes:

Can be installed with or without the rough-in plate (80-959)

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's S11815 wattage selectable, 6 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations and

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.99

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

23WLED/CDL/6/ADJ-CCT/40D

Specification Notes:

Default CCT setting is 3000K.  Default wattage setting is 23W.

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

1.47
