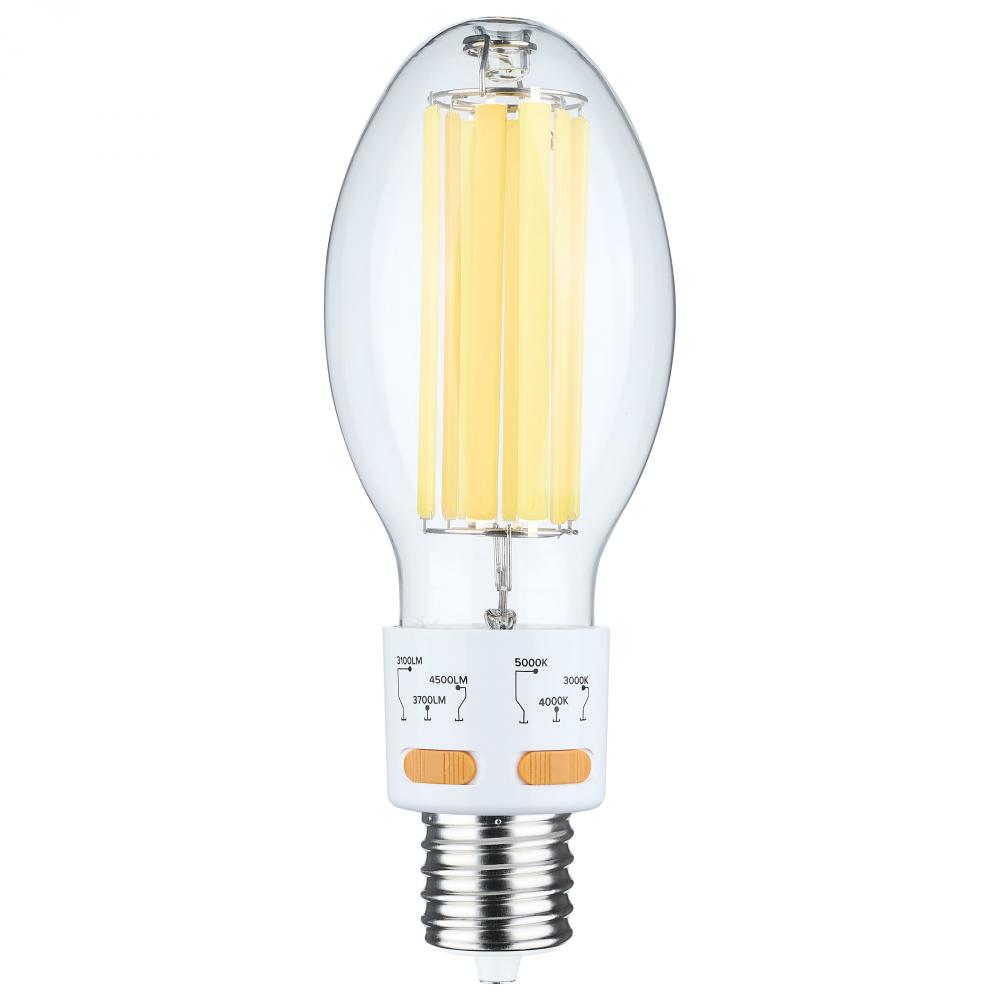

17/20.5/25 Wattage Selectable LED HID Replacement; ED28; 3000K/4000K/5000K CCT Selectable; Mogul Extended Base; Clear; 120-277 Range Voltage
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Refinement Options
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
ED28
Diameter:
3.58
EA Length:
3.54
Harmonized Codes:
8539.52.0091
Length:
9.92
Lumens:
3100L/3700L/4500L
Shap Carton Width:
3.54
Ship Carton Height:
10.63
Ship Weight:
0.55
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.55
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Candle Power:
250
Carton Cubic Feet:
0.0771
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Natural Light
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-YZF3TT
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Efficacy:
182.35/180.49/180.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Field Selectable - Wattage and CCT Selectable
Feature 2:
Type B - Ballast Bypass
Feature 3:
Range Voltage 120V-277V
Feature 4:
360-Degree Illumination
Feature 5:
Wet location rated
Feature 6:
Universal Operating Position
Feature 7:
Glass Lamp
Feature 8:
EX39 Mogul base
Feature 9:
Rated for Use in Enclosed Fixtures
HID Equivalent:
50W/70W/100W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Wet
Long Description:
SATCO|NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This field selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lastin
Material:
Glass
Minimum Compartment Size:
Length: 14.02 in. Width: 8.03 in. Height: 8.03 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Pack Type:
Color Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
2
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps
