Product Overview

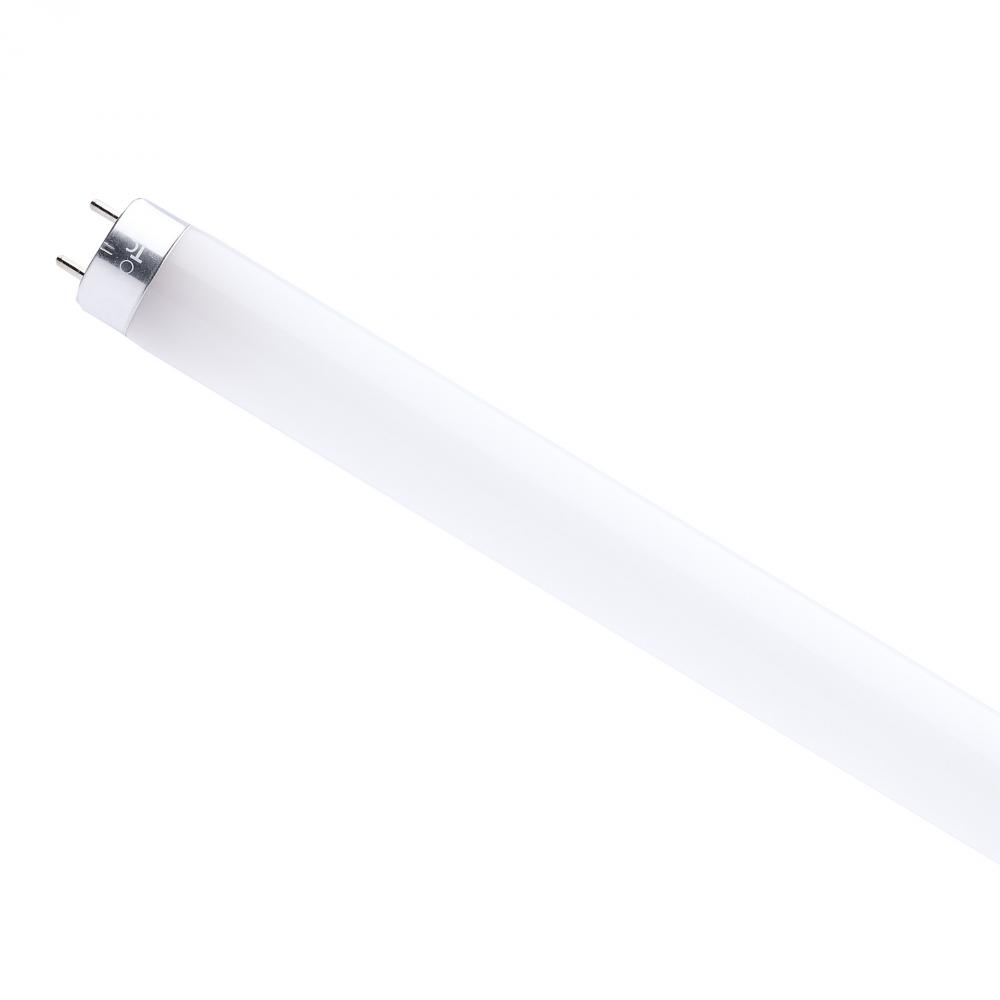

14 Watt; 4 Foot T8 LED; G13 Base; 5000K; Type A

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

T8

Diameter:

1.1

EA Length:

48

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

2200L

Shap Carton Width:

1.1

Ship Carton Height:

1.1

Ship Weight:

0.44

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.39

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Gloss White

Carton Cubic Feet:

0.0336

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-5GVY6Y

DLC Primary Use:

Replacement Lamps (Plug and Play) (UL Type A)

Efficacy:

157.14 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

5000K CCT

Feature 2:

Type A - Direct Replacement

Feature 3:

Integrated Thermal Protection

Feature 4:

Damp location rated

Feature 5:

Dimmable with Select Ballasts

Feature 6:

Rated for Use in Enclosed Fixtures

Feature 7:

NSF Rated

Feature 8:

Glass Tube

Feature 9:

Double Ended Wiring

Flourescent Equivalent:

32W/30W/28W/25W

Housing Color:

White

Incandescent Equivalent:

175W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO|NUVO's S49978R1 Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing

Material:

Glass / Steel

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

6

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing, these l

SDS class:

LED_Lamp

Short Description:

14/T8/LED/48-850/DR

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

14W

Country of Origin- China
