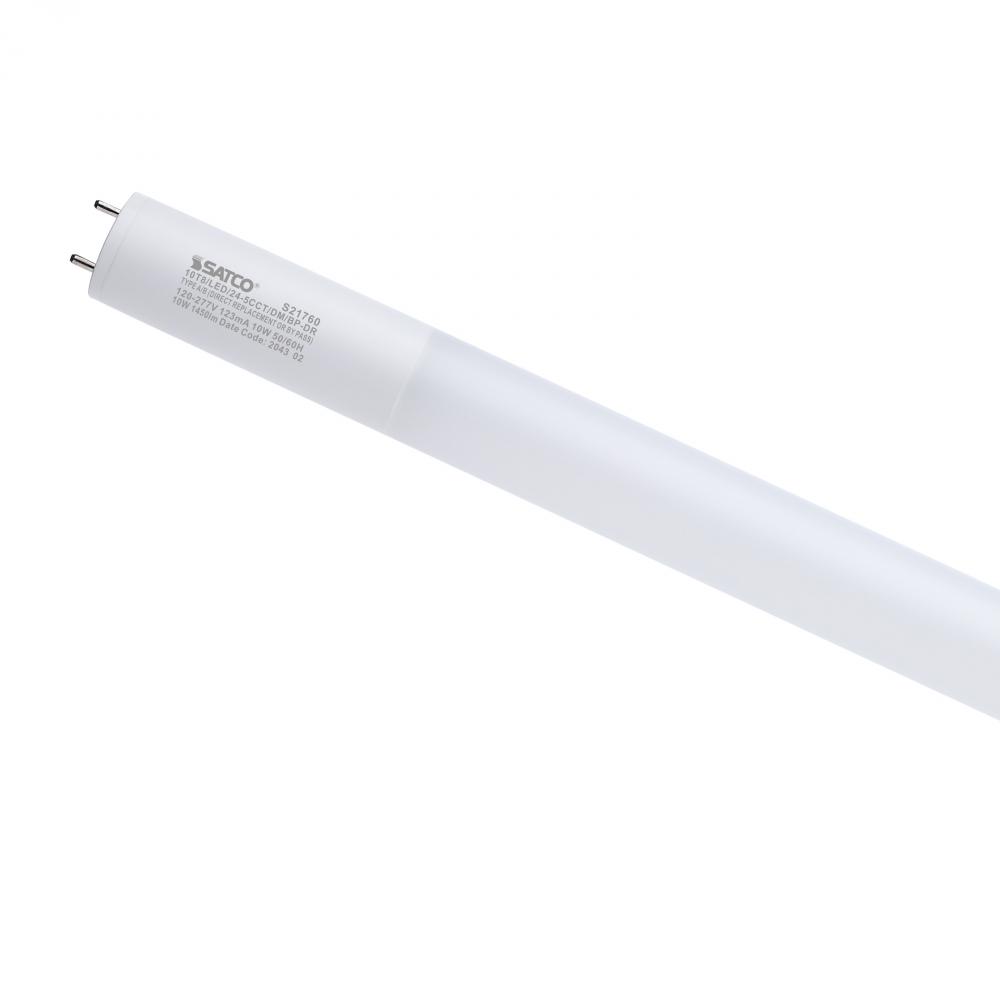

10 Watt T8 LED; 24-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Refinement Options
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
24.65
Harmonized Codes:
8539.52.0051
Length:
24.65
Lumens:
1450L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.27
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.27
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
170
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0143
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-KYQNVV
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
145.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Dual Mode Type A + B
Feature 2:
5 CCT Selectable
Feature 3:
Range Voltage 120V-277V
Feature 4:
Up to 150 LPW
Feature 5:
170-Degree Beam Angle
Feature 6:
DLC Listed
Feature 7:
Dimmable
Feature 8:
Damp Location Rated
Flourescent Equivalent:
15W/17W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO|NUVO's LED T8 Lamps - Type A + B are versatile for use in ballast bypass or ballast compatible configurations. High-performing, these lamps are damp location rated for reliable use in humid areas. With five selectable CCTs at installation, and di
Material:
Glass
Nominal Length:
24
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED T8 Lamps - Type A + B are versatile for use in ballast bypass or ballast compatible configurations. High-performing, these lamps are damp location rated for reliable use in humid areas. With five selectable CCTs at installation, and di
