Product Overview

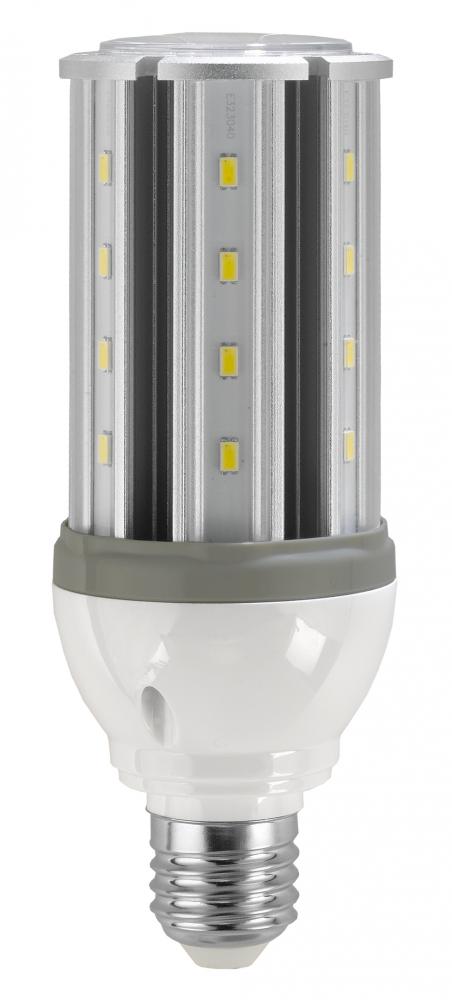

10 Watt LED HID Replacement; 5000K; Medium base; 12-24V DC Only

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

1101-1600

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

12V-24V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

Corncob

Diameter:

2.44

EA Length:

2.87

Harmonized Codes:

8539.52.0091

Length:

5.81

Lumens:

1200L

Shap Carton Width:

2.87

Ship Carton Height:

6.46

Ship Weight:

0.55

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.55

AC/DC:

12V-24V DC Only

BAA Compliant:

No

Beam Spread:

330

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0308

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Non-Compliant - <82 CRI

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

120.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

HID Equivalent:

30W

Housing Color:

White/Grey

Incandescent Equivalent:

90W

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP64

JA8 Compliant:

No

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 8.50 in. Width: 6 in. Depth: 6 in.

Operating Frequency:

50Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.99

Quantity In Pack:

1

R9 Value:

15

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

10W/LED/HID/5000K/12V-24V E26

Style:

Contemporary

Technology:

LED

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

10W

Country of Origin- China
